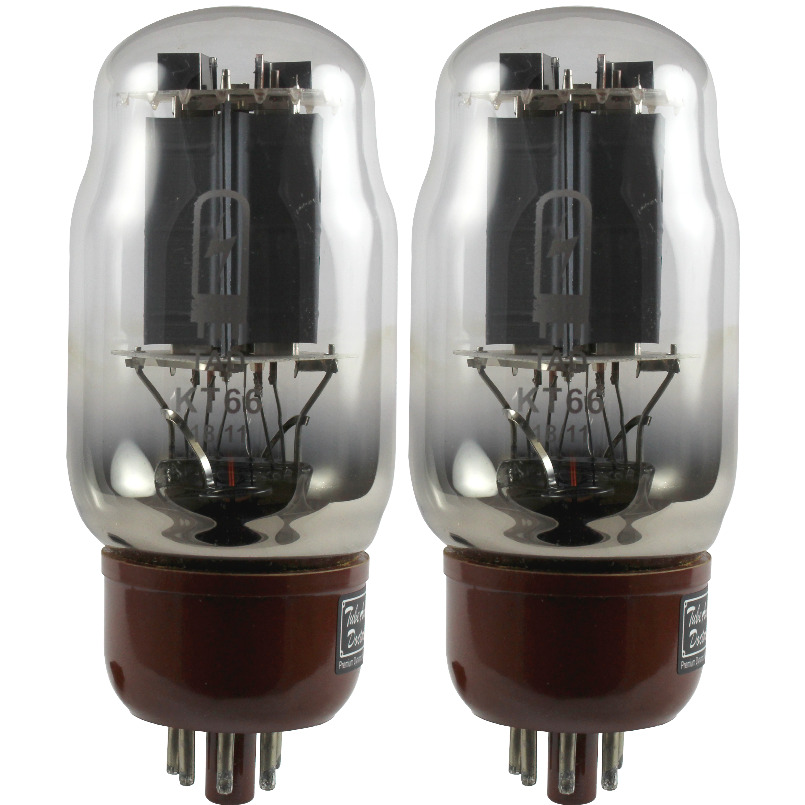

Vacuum Tube, KT66, Tube Amp Doctor, Premium Selected, Matched Pair, Power

$ 46.95 ~~$ 93.90~~

Any return for unsatisfied item(s) is available within 30 days

A full refund within one week upon receiving your return

Enjoy free shipping on all orders $50

TRUSTED STORE

chepestdiscount.ru

99% Issue-Free

Secure Checkout

$10K ID Protect

GUARANTEED SAFE CHECKOUT

Description Information Reviews

Name	Value
Brand	Tube Amp Doctor (TAD)
Amplifier Type	Unknown
Heater Voltage	5.8 V - 6.8 V, 6.3 V nominal
Heater Current	1.27 A
Cathode to Heater Voltage	≤ 150 V
Grid 1 to Cathode, Grid 3, Grid 2, Base Sleeve, Heater Capacit...	< 16 pF
Plate to Cathode, Grid 3, Grid 2, Base Sleeve, Heater Capacitance	< 11.5 pF
Grid 1 to Plate Capacitance	< 1.1 pF
Item Height	129 mm
Body Height	116 mm
Item Diameter	51 mm
D.C. Plate Voltage, AF Power Amplifier	500 V
Grid 2 Dc (screen) Voltage, Af Power Amplifier	400 V
Grid 1 (control) Voltage, Af Power Amplifier	-300 V
D.C. Cathode Current, AF Power Amplifier	100 mA
Plate Dissipation, AF power amplifier (W<sub>a</sub>)	25 W
Grid 2 Dc (screen) Dissipation, Af Power Amplifier	3.5 W
Plate Voltage, class A1 (U<sub>a</sub>)	250 V
Grid 2 Screen Voltage, Class A1	250 V
Grid 1 Control Voltage, Class A1	-15 V
Plate Current, class A1 (I<sub>a</sub>)	82 mA
Grid 2 Current, Class A1	5 mA
Peak Input Grid 1 Voltage	15 V
Transconductance, Class A1 (S)	8.5 mA/V
Load Resistance, Class A1	2.2 kΩ
Output Power (P<sub>Out</sub>) @ 5% Distortion, Class A1	7.25 W
Type	Vacuum Tube
MPN	T-KT66-TAD-MP
Compatible Brand	Any
Compatible Model	Any
